QUWIRELESS QUMAX ANTENNA FOR TELTONIKA TRB140 WITH HOUSING (LTE)

QUWIRELESS QUMAX ANTENNA FOR TELTONIKA TRB140 WITH HOUSING (LTE)

Product Code: CAM-TE-00029
QuMAX Antenna is designed for long-distance connectivity and is the most powerful in the range of QuWireless antennas.
In Stock - Available for Fast Delivery
Vendor: CAM

Available

Title

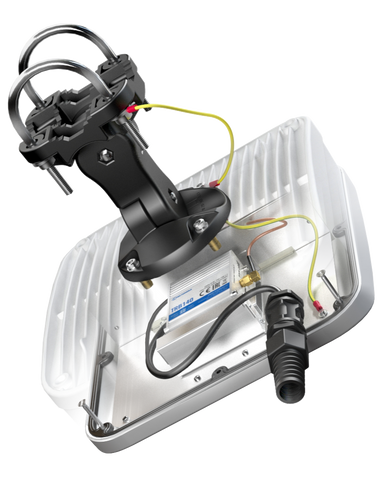

QuMAX Antenna is designed for long-distance connectivity and is the most powerful in the range of QuWireless antennas. It incorporates an IP67 enclosure designed to house Teltonika TRB140 router.

NOTE:

  • Teltonika TRB140 Router sold separately
  • Passive 24V PoE Injector sold separately
  • If QuMax antenna needs to be connected to an older version of TRB140, RJ45 power adapter needs to be changed to a compatible adapter at the time of ordering
SPECIFICATIONS

LTE ANTENNA

Frequency

0.694 – 0.96 GHz

1.7 – 2.2 GHz

2.2 – 2.7 GHz

Supported LTE/5G bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

Gain

0.694 – 0.96 GHz:  4 dBi

1.7 – 2.2 GHz: 5 dBi

2.2 – 2.7 GHz: 6 dBi

Front-to-Back

>8 dB

VSWR

<1.30, max <1.80

Beamwidth

90°/90° ±30°

Polarization

Vertical

Impedance

50 Ω



MECHANICAL

Materials

ABS, aluminum, PTFE, Fiberglass

Connector type

RJ45

Ingress protection

IP67

Dimensions

272 x 276 x 96 mm

Weight

1.8 kg

Operating temperature

From -40°C to 75°C
